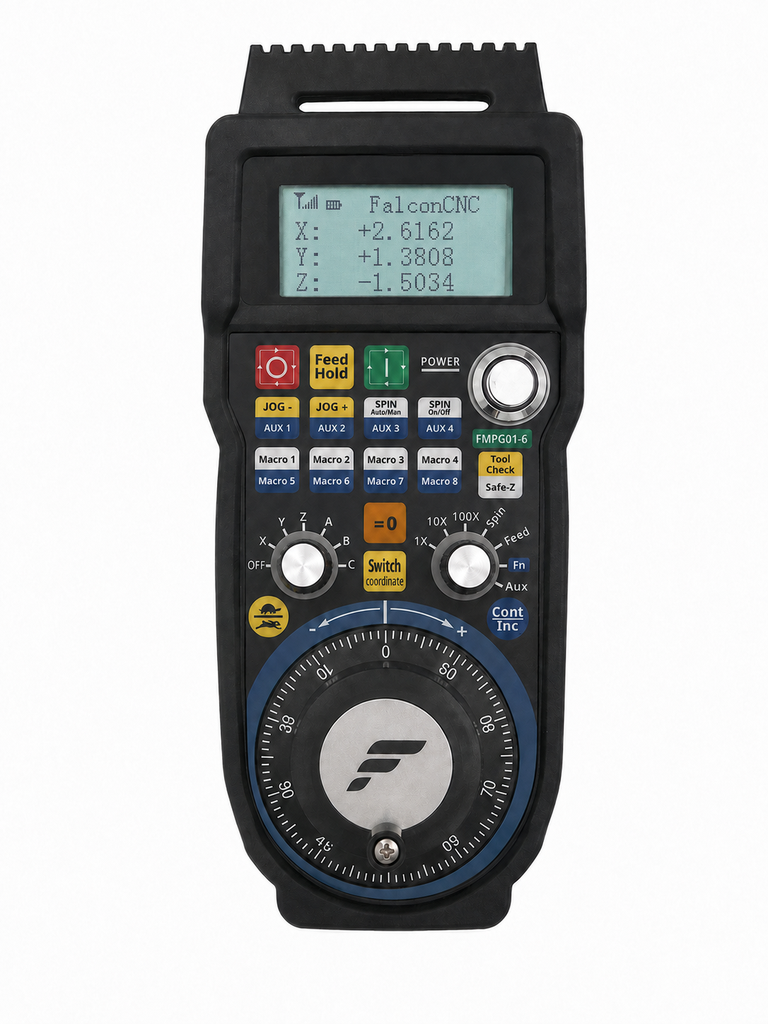

Falcon Wireless MPG-6

https://falcon-precision.com/web/image/product.template/273/image_1920?unique=4149c8c

FMPG01-6 Kit includes:
1x FMPG01-6 Wireless MPG pendant
1x USB Wireless Transmitter / Receiver
1x Mounting Bracket

*Optional Encoder Module (required for use with FalconCNC UI or FalconCNC Accessory Connector Service).

NOTE:
* Some features are not compatible w/ Centroids Driver.
* Extra features are only compatible when using FalconCNC.
* The standard Centroid features are Directly Compatible w/ Centroids WMPG Drivers.

Currently on Backorder Next batch approx. 11/15/2026

$ 261.00 261.0 USD $ 290.00

$ 290.00

Not Available For Sale

  • Wireless MPG Options

This combination does not exist.

Contact Us

Terms and Conditions

Internal Reference: FMPG01-6

FMPG-6 CNC Control Pendant

 Take the control to where the work is! A game changing tool, the Falcon Wireless MPG handwheel CNC Control pendant allows the operator to set up jobs and tools conveniently and precisely remotely.  Perfect for all types of Mills, Lathes, Routers and other specialty CNC machines. Control up to Six Axes from the palm of your hand! Multiple units can be used in the same location without issue.


When using with CNC12 there are No software or drivers to install. Plug and Play with Centroid CNC12 Pro CNC software, just plug in the included USB transmitter/receiver and start using it!


 Requirements for use with Centroid CNC's CNC12
 - Acorn CNC12 v4.64+ w/ Mill Pro, Mill Ultimate, Lathe Pro, Lathe Ultimate, Router Pro, Router Ultimate, Plasma Pro, or Plasma Ultimate License

 Oak, Allin1DC, Hickory, and MPU11 system Requirements
 - CNC12 v4.20+ with Pro or Ultimate License
 - Older systems may require a PLC update to fully support WMPG-6 features and functionality


Use all added Falcon Functions with CNC12 (no FalconCNC UI required)
- Requires the Falcon Encoder Module and Falcon Drivers (may need Customized PLC)

 FalconCNC UI for Centroid
- Must be using FalconCNC as your UI (not special CNC12 License required but we do recommend at least the pro license)
- Needs the Encoder Module (may need Customized PLC)

 FalconCNC UI for LinuxCNC
- Nothing Special required!


 Compatible with:
 Acorn CNC Controller Kit (14455)
 AcornSix CNC Controller Kit (15136)
 Allin1DC CNC Controller Kit (14999)
 Oak CNC Controller Kit (15000)
 Hickory CNC Controller Kit (14924)
 LinuxCNC (comes with all required items)  * This is currently not available for purchase yet, we only include this with our customer machines running our version of FalconCNC using LinuxCNC as the backend motion controller. We are not supporting public use for this yet please check in later

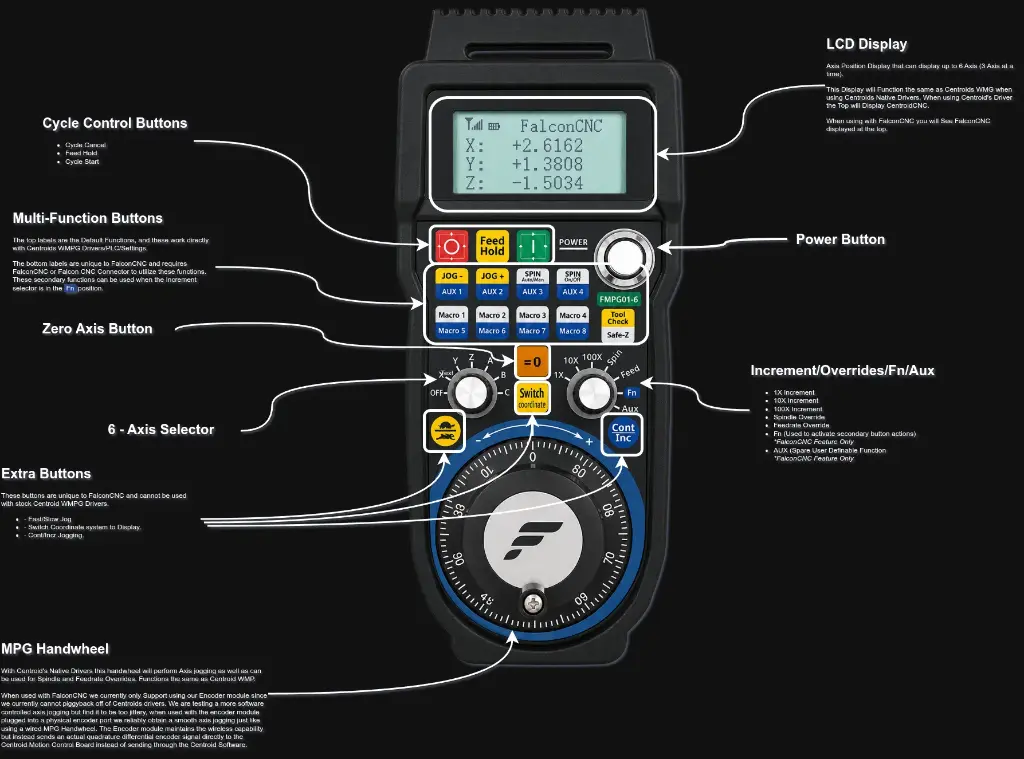

 Features:
 - On-the-fly Feed Rate override
 - On-the-fly Spindle Speed override
 - 6 axis DRO display (4 axis on main screen, 2 axis on sub menu *when used with Centroids drivers FalconCNC uses a scroll like view 3 main & 3 sub)
 - 6 axis MPG and continuous jogging control
 - Robust wireless communication
 - No software drivers to install *only when used with Centroids drivers
 - Hanger bracket mount w/ magnets
 - Smooth motion
 - Long range wireless
 - Works with CENTROID developed drivers *only standard Centroid features will work
 - Takes 2 AA batteries
 - run time approx. 1 month


Features:
 - On-the-fly Feed Rate override
 - On-the-fly Spindle Speed override
 - 6 axis DRO display (4 axis on main screen, 2 axis on sub menu *when used with Centroids drivers FalconCNC uses a scroll like view 3main & 3 sub menu)
 - 6 axis MPG and continuous jogging control
 - Robust wireless communication
 - No software drivers to install *only when used with Centroids drivers
 - Hanger bracket mount w/ magnets
 - Smooth motion
 - Long range wireless
 - Works with CENTROID developed drivers *only standard Centroid features will work
 - Takes 2 AA batteries
 - run time approx. 1 month



Centoid CNC12 (with Centroid wireless Drivers)
Compatible with All Centroid boards with Pro or higher Licensing.

FalconCNC for Centoid CNC12
Compatible with All Centroid boards
Requires Encoder Module
No special CNC12 License required but recommend Pro or Higher to get the most out of your machine

FalconCNC for LinuxCNC
It Just works!
* This is currently not available for purchase yet, we only include this with our customer machines running our version of FalconCNC using LinuxCNC as the backend motion controller. We are not supporting public use for this yet please check in later.

LinuxCNC
Will need our daemon service and Hal template. Users will need to configure their own HAL. * This is currently not available for purchase yet.

User Manual/Setup Guide:
